Deskripsi
LIHAT BROSUR : Brosur GPS Geodetik Hi-Target V90 RTK GNSS

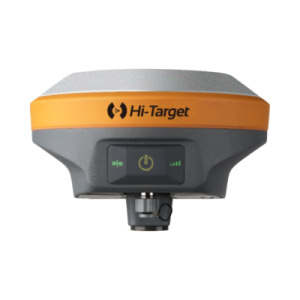

GPS Geodetic Hi-Target V90+ (Plus) GNSS RTK memiliki desain berteknologi tinggi dan terintegrasi penuh, yang berukuran nyaman adalah salah satu pilihan paling fleksibel untuk tugas pengukuran apa pun.
Dibangun dengan Sistem operasi Linux 3.2.0 didalamnya, menghasilkan beberapa aplikasi canggih yang dimuat sebelumnya seperti survei kemiringan, kalibrasi gelembung elektronik, NFC, dan suara buatan sendiri. Sistem GNSS V90+ (Plus) sendiri menyediakan kemudahan untuk surveyor di industri operasi GNSS.
Alat ini mampu memberikan kemudahan ke penggunanya ketika melakukan pengukuran luas. Sehingga pengguna akan merasakan pengukuran luas yang mudah, cepat serta akurat.
Indosurta Samarinda jual GPS Geodetic Hi-Target V90+ (Plus) dengan harga murah dan bergaransi resmi 1 tahun. Untuk pembelian alat silahkan hubungi kami.
Spesifikasi GPS Geodetic Hi-Target V90+ GNSS RTK
Satellite Signals Tracked Simultaneously
1408 Channels (only for gnss manufactured in 2024 and above)
- GPS: Simultaneous L1C/A, L2C, L2E, L5
- GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
- BDS: B1, B2
- Galileo: Simultaneous E1 BOC, E5A, E5B, E5AltBOC
- SBAS: L1 C/A, L5
550 Channels (Optional)
- GPS: L1C/A, L1C, L2C, L2P, L5
- GLONASS: L1C/A, L2C, L2P, L3, L5
- BeiDou: B1, B2, B3
- Galileo: E1, E5A, AltBOC, E5a, E5B, E6
- IRNSS: L5
- SBAS: L1, L5
- QZSS: L1C/A, L1C, L2C, L5, L6
- L-band: Up to5 channels
- TerraStar Correction Services
Positioning Performance
- Hot Start: Typically< 10s
- Cold Start: Typically< 15s
- High Precision Static
- Horizontal: 2.5 mm + 0.1 ppm RMS
- Vertical: 3.5 mm + 0.4 ppm RMS
- Static and Fast Static
- Horizontal: 2.5mm + 0.5 ppm RMS
- Vertical: 5 mm + 0.5 ppm RMS
- Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying
- Horizontal: 8mm+1ppm RMS
- Vertical: 15mm+1ppm RMS
- Initialization time: Typically 10 min for base and 5 min for rover
- Initialization reliability: Typically > 99.9%
Real Time Kinematic (RTK) Surveying
- Single Baseline
- Horizontal: 8mm+1ppm RMS
- Vertical: 15mm+1ppm RMS
- Code Differential GNSS Positioning
- Horizontal: 25cm+1ppm RMS
- Vertical: 50cm+1ppm RMS
- SBAS: 0.5 m(H), 0.85 m(V)
- Network RTK
- Horizontal: 8mm+0.5ppm RMS
- Vertical: 15mm+0.5ppm RMS
- Initialization time: Typically 2-10s
- Initialization reliability: Typically > 99.9%
Communication
- Network Communication:
- Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM
- Wifi frequency is 2.4G, supports the standard protocol 802.11b/g/n
- Network RTK (via CORS) range 20-50km
Hi-Target Advanced Internal UHF Radio
- Frequency: 403-473Mhz
- Transmitting power: 1W,2W,4W adjustable
- Transmitting linkrate: 9.6Kbps, 19.2Kbps
- Support Multiple protocols:
- Working Range: Typically 3~5km, optimal 5~8km
SATEL Internal UHF Radio (Optional)
- Frequency: 403-473Mhz
- Transmitting power: 0.1W~1W adjustable
- Transmitting linkrate: 9.6Kbps, 19.2Kbps
- Support Multiple Communication protocols
- Working Range: Typically 3~5km, optimal 5~8km
Hi-Target External UHF Radio
- Frequency: 460MHz with 116 channels
- Transmitting power: 5W/25W adjustable
- Transmitting speed: Up to 19.2Kbps
- Working Range: Typically 8~10km, optimal 15~20km
Advanced External UHF Radio (Optional)
- Frequency: 41o-47oMhz
- Transmitting power: 5W/25W
- Compatible with third party radio
- Working Range: 8~10km typically, optimal 15~20km
Hardware
Physical
- Dimension (W x H): 153mm x 83mm (6.02inch x 3.27inch)
- Weight: 950g (2.09lb) without internal battery
- Operation Temperature: -40°C ~+ 75°C (-40°F ~+ 167 °F)
- Storage Temperature: -55°C ~+ 85°C (-67°F ~+ 185 °F)
- Humidity: 100%, condensing
- Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft)
- Shock and Vibration: Designed to survive a 2m (6.56ft) natural fall onto concrete
Electrical
- Power 6V to 28V DC external power input
- power consumption ≤ 3.5W
- Automatic switching between internal power and external power
- Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment
Internal Battery Life
- Static more than 12 hours.
- RTK Base more than 8 hours.
- RTK Rover (UHF/GPRS/3G) for 10 hours.
I/O Interface
- Bluetooth, NFC, standard USB 2.0 port, TNC antenna connector
- RS232 serial port, DC power input (5-pin), MicroSD card port
Tilt Survey System
Electronic Bubble
WebUI
System Configuration
System
- Data Storage: 16GB Internal storage+ Internal Micro SD Card memory (Support up to 32GB extension)
- Record GNS and Rinex format simultaneously
Data Formats
- (1Hz positioning output, up to 50Hz – depends on installed option)
- CMR: sCMRx, CMR, CMR+input and output
- RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output
- Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
- Navigation outputs binary: GSOF
